For a safe, more comfortable you.
-
When comfort is designed into respiratory protection products, workers can focus on the work and not the PPE. The 3M™ Versaflo™ Powered Air Purifying Respirator (PAPR) system tries to do just that - engineered for versatility and customization, so safety managers can build the system that works for their employees. Choose from a wide range of headgear, breathing tubes and air sources to customize a PAPR solution that works for your environments.
Download the interactive versaflo catalog (PDF, 12.4 MB) to see the whole family.
-
3M™ Versaflo™ TR-800 Intrinsically Safe PAPRLearn More
-
-
3M™ Versaflo™ PAPRs with Tight-fitting FacepiecesLearn More
-
3M™ Versaflo™ TR-6590N Multi-gas CartridgeLearn More
-
3M™ Radiant Heat Accessories for select M-Series HelmetsLearn More
Build the PAPR system that works for your environment

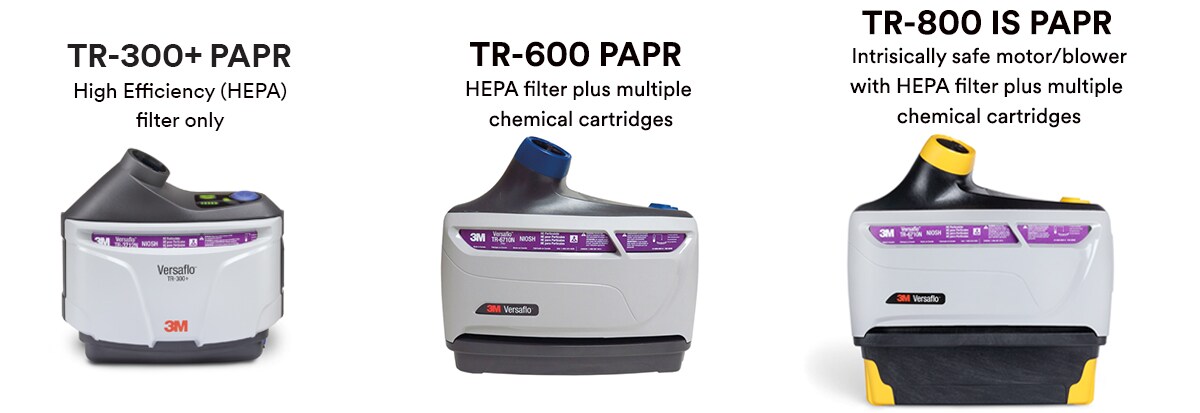

See comparison chart for 3M™ Versaflo™ Powered Air Purifying Systems TR-300+ vs TR-600 vs TR-800.
Go to 3M™ Versaflo™ TR-300 and 300+ PAPR products
Go to 3M™ Versaflo™ TR-600 PAPR products
Go to 3M™ Versaflo™ TR-800 PAPR products
Airflow: 2 speeds - 6.7 cfm (190 lpm), 7.2 cfm (205 lpm)
Blower Alarms: Visual/Audible
User Interface: Battery charge, filter loading alarm & airflow status alarm
Airflow: 2 speeds - 6.7 cfm (190 lpm), 7.2 cfm (205 lpm)
Blower Alarms: Visual/Audible
User Interface: Battery charge, filter loading alarm & airflow status alarm
Cleaning: Wipe down only
Ingress Protection (in use): I-53 Rating, suitable for use in a decontamination shower with a spray of up to 60 degrees verticle
Cleaning: Wipe down only
Ingress Protection (in use): I-53 Rating, suitable for use in a decontamination shower with a spray of up to 60 degrees verticle
Batteries: Lithium Ion, Standard and High Capacity, both include On-Board battery gauge
Battery weight: Standard - 0.5 lbs., High Capacity - 0.8 lbs.
Batteries: Lithium Ion, Standard and High Capacity, both include On-Board battery gauge
Battery weight: Standard - 0.5 lbs., High Capacity - 0.8 lbs.
Motor Blower Weight: 1.5 lbs.
Blower Dimensions (with HE Filter and cover): 8" w x 7" h x 3" d
Elevation limits: -100m (-328 ft.) to 4,300m (14,107 ft.)
Motor Blower Weight: 1.5 lbs.
Blower Dimensions (with HE Filter and cover): 8" w x 7" h x 3" d
Elevation limits: -100m (-328 ft.) to 4,300m (14,107 ft.)
Airflow: 3 speeds - 6.7 cfm (190 lpm), 7.2 cfm(205 lpm), 7.8 cfm (220 lpm)
Blower Alarms: Visual/Audible/Vibratory
User Interface: Battery charge, filter loading alarm & airflow status alarm
Airflow: 3 speeds - 6.7 cfm (190 lpm), 7.2 cfm(205 lpm), 7.8 cfm (220 lpm)
Blower Alarms: Visual/Audible/Vibratory
User Interface: Battery charge, filter loading alarm & airflow status alarm
Cleaning: Wipe down, rinse or submerge using TR-653 Cleaning & Storage Kit
Ingress Protection (in use): I-54 Rating, IP-67 with cleaning & storage kit in place
Cleaning: Wipe down, rinse or submerge using TR-653 Cleaning & Storage Kit
Ingress Protection (in use): I-54 Rating, IP-67 with cleaning & storage kit in place
Batteries: Lithium Ion, Standard and High Capacity, both include On-Board battery gauge
Battery weight: Standard - 1 lb., High Capacity - 1.4 lbs.
Batteries: Lithium Ion, Standard and High Capacity, both include On-Board battery gauge
Battery weight: Standard - 1 lb., High Capacity - 1.4 lbs.
Motor Blower Weight: 1.5 lbs.
Blower Dimensions (with HE Filter and cover): 10" w x 8" h x 3" d
Elevation limits: -100m (-328 ft.) to 5,000m (16,404 ft.)
Motor Blower Weight: 1.5 lbs.
Blower Dimensions (with HE Filter and cover): 10" w x 8" h x 3" d
Elevation limits: -100m (-328 ft.) to 5,000m (16,404 ft.)
Motor Blower Weight: 1.5 lbs.
Dimensions (with HE Filter and cover): 10" w x 8" h x 3" d
Elevation limits: -100m (-328 ft.) to 5,000m (16,404 ft.)
Motor Blower Weight: 1.5 lbs.
Dimensions (with HE Filter and cover): 10" w x 8" h x 3" d
Elevation limits: -100m (-328 ft.) to 5,000m (16,404 ft.)
Cleaning: Wipe down, rinse or submerge using TR-653 Cleaning & Storage Kit
Ingress Protection (in use): I-54 Rating, IP-67 with cleaning & storage kit in place
Cleaning: Wipe down, rinse or submerge using TR-653 Cleaning & Storage Kit
Ingress Protection (in use): I-54 Rating, IP-67 with cleaning & storage kit in place
Batteries: Lithium Ion, Standard includes On-Board battery gauge Mechanical attachment of battery to help prevent battery removal and spark risk per IEC/UL 60079, 2013
Battery weight: 1.5 lbs.
Batteries: Lithium Ion, Standard includes On-Board battery gauge Mechanical attachment of battery to help prevent battery removal and spark risk per IEC/UL 60079, 2013
Battery weight: 1.5 lbs.
Airflow: 3 speeds - 6.7 cfm (190 lpm), 7.2 cfm (205 lpm), 7.8 cfm (220 lpm)
Blower Alarms: Visual/Audible
User Interface: Battery charge, filter loading alarm & airflow status alarm with yellow touchpoints
Airflow: 3 speeds - 6.7 cfm (190 lpm), 7.2 cfm (205 lpm), 7.8 cfm (220 lpm)
Blower Alarms: Visual/Audible
User Interface: Battery charge, filter loading alarm & airflow status alarm with yellow touchpoints
-
Want to try a Versaflo PAPR?
Are you ready to experience the new technology in 3M respiratory protection at your site? Well now you can! Request a demo of a 3M™ Versaflo™ Powered Air Purifying Respirator for two weeks at no cost to you.
Speak to a 3M Representative 1-800-328-1667 or request a demo
Ready to Upgrade to 3M™ Versaflo™ Respirator Systems?
Save $200 per unit on qualifying purchases.
3M is pleased to announce the expansion of the trade-in offer for qualifying customers in the United States who wish to upgrade to 3M™ Versaflo™ Respirator Systems. Please contact your local 3M Personal Safety Representative to get started!
Top Tech Line Questions asked about 3M Versaflo™ Products
-
Q. How can I clean/disinfect the 3M™ Versaflo™ Powered Air Purifying Respirators?
A. Versaflo TR-600 PAPR: With the use of TR-653 Cleaning and Storage Plugs, the TR-600 can be rinsed under running water, immersed in water for up to 30 minutes at 1 meter, or put in a respirator washer. Please reference the TR-600 User Instructions (PDF, 1.86 MB) and TR-653 Cleaning and Storage Guide for further details.
Cleaning, Inspection and Storage of the 3M Versaflo
Versaflo TR-600 PAPR – Follow User Instructions (PDF, 768.88 KB)
See video for additional information
Versaflo TR-300 PAPR – Follow user instructions (PDF, 1.31 MB). Information can also be found in the Inspection, Cleaning and Storage Procedures for 3M TR-300 PAPR Assemblies - Tech Data Bulletin #198 (PDF, 47.65 KB)
Versaflo TR-300+ PAPR - See above TR-300 info. Please note: some videos and literature describe and show the Versaflo TR-300 PAPR, but the steps would be the same for the Versaflo TR-300+ PAPR. Updated content to come in late 2018.
Versaflo TR-800 PAPR – See above for TR-600 info relating to TR-653 Cleaning and Storage Kit. While products are different, operations will be the same for both motor blowers and batteries. See full video
ANY QUESTIONS? CALL THE 3M TECHNICAL HELP LINE AT 1-800-243-4630.
-
Q. The TR-3710N has been discontinued, what is the replacement part number?
A. The TR-3710N has been discontinued and has been directly replaced with the TR-3712N.
-
Q. When will the multi-gas cartridge for the 3M™ Versaflo™ TR-600 PAPR be available?
A: The TR-6590N Multi-Gas Cartridge launching in 2018. This is the first-ever NIOSH-approved, multigas PAPR cartridge approved for use against mercury. It is also approved for use against: particulates, chlorine dioxide, chlorine, hydrogen chloride, hydrogen fluoride, sulfur dioxide, ammonia, methylamine, certain organic vapors.
-
Q. Is the filter cover necessary to operate the 3M™ Versaflo™ TR-600 or TR-800 PAPR unit?
A: No. At a minimum, each NIOSH-approved configuration of this PAPR system should include approved headgear or facepiece, breathing tube, motor/blower, filter/cartridge, battery, and a belt or backpack. Common accessories include prefilter/spark arrestor and filter cover. Please refer to the supplied User Instructions.
-
Q. What is the cartridge service life for the 3M™ Versaflo™ TR-600 and TR-800 cartridges?
A. It all depends on your specific application and environment - See these two reference materials for assistance the TR-600 Service Life Letter (PDF, 37.86 KB) and the Service Life Software
The content in each of these links can be applied to both the Versaflo TR-600 and the TR-800 PAPR.
Please note, the above two reference materials do not include information on the 3M™ TR-6590N Multi-Gas Cartridge.
-
Q. Do you sell just the storage bag that is included in the 3M™ Versaflo™ TR-300/TR-600 PAPR Healthcare Kits?
A. Yes, the bag can be purchased a la carte, the part number is TR-991.
-
Q. We’ve heard that the 3M™ Air-Mate™ High Efficiency Belt-Mounted PAPR has been discontinued– what is the suggested replacement?
A: Yes, the Air-Mate full kits and assemblies were discontinued in mid-2017. The direct replacement would be the 3M™ Versaflo™ TR-300+ PAPR.
-
Q. Are there any kits/packouts that include the 3M™ Versaflo™ M-400 headtop?
A. Not at this time, only M-200 and M-300 (PDF, 1017.93 KB) series Headtops are included in kits.
-
Q. Are the 3M™ Speedglas™ 9100 Series welding helmets approved for use with the 3M™ Versaflo™ TR-600 PAPR units?
A. Yes, please reference the 9100 Series with TR-600 Product Announcement (PDF, 93.04 KB). For proper configurations, always consult the NIOSH approval label.
3M™ Versaflo™ PAPR catalog (PDF, 6.37 MB)
3M™ Versaflo™ 300+ PAPR brochure (PDF, 1.85 MB)
3M™ Versaflo™ 800 PAPR brochure (PDF, 845.67 KB)
3M™ Versaflo™ TR-6590N Multi-Gas Cartridge Brochure (PDF, 1.35 MB)
3M Radiant Heat Accessories (PDF, 12.67 MB)
3M™ Versaflo™ Healthcare catalog (PDF, 1.60 MB)
Versaflo Belt-Mounted Powered Air Purifying Respirator Systems flyer (PDF, 220.98 MB)
Three systems. One solution. Power your day. (PDF, 1.05 MB)
3M™ Powered & Supplied Air Purifying Respirator Systems Matrix (PDF, 3.1 MB)
Top Tech Line Questions about Powered & Supplied Air (PDF, 227.83 KB)
Top Tech Line Questions about Versaflo (PDF, 147.58 KB)
Versaflo PAPR Comparison Chart (PDF, 515.33 KB)
Versaflo FAQs (PDF, 241.44 KB)
3M™ Versaflo™ S-Series Hoods and Headcovers Brochure (PDF, 1.8 MB)
Applicable Industries
-
Pharmaceutical
Equip your people with personal protection that can easily be tailored for specific hazards and changing conditions. 3M™ Versaflo™ PAPR Systems are available with an expanded range of NIOSH-approved filter/cartridges to help protect against hazards associated with handling pharmaceutical ingredients and cleaning operations.
-
Transportation
Safer, faster and lighter ways to keep the world moving.
PPE is just one of the many ways 3M products play an innovative role in the transportation industry. See how else we can help keep your transportation company moving forward.
-
Heavy Industry
World-class manufacturers need world-class safety equipment. Help keep your workforce protected, comfortable and productive - so they can keep working, keep building, keep moving.
-
Metalworking
We aim to increase awareness surrounding issues with exposures to hazards such as Manganese, Hexavalent Chromium, and Silica. Our goal is to provide training on up-to-date and relevant technical information, industry best practices, and potential safety solutions
