Tips and Help for the New US OSHA Silica Regulation

OSHA Silica: Know the drill.

OSHA's silica construction standard is already in effect. Is your crew protected?

JOIN THE JOURNEY

Reducing Exposures to Crystalline Silica

It’s estimated that more than 2.3 million workers in the United States are potentially exposed to dust containing crystalline silica — with nearly 90% of those workers employed in the construction industry. According to OSHA, in 2014 more workers died from silicosis than from being caught in or crushed by collapsing materials, such as in trench and structure collapses.*

* OSHA Frequently Asked Questions: Respirable Crystalline Silica Rule

What is the new US OSHA construction silica regulation?

The new US OSHA 29 CFR 1926.1153 regulation requires contractors to control their employees’ exposure to respirable crystalline silica. Highlights of the new regulation include:

New Reduced Permissible Exposure Limit (PEL)

Written Exposure Control Plan

Medical Surveillance

Silica Competent Person

Resources:

Compliance Summary Checklist (PDF, 165 KB)

Respirable Crystalline Silica in Construction (PDF, 573 KB)

Task-based PPE Suggestions for Silica in the Construction Industry (PDF, 376 KB)

Silica in Construction - Regulation Update (PDF, 518 KB)

See full regulation at: https://www.osha.gov/silica

Go to 3M Center for Respiratory Protection
Watch Webcast

This 40-minute webcast features construction industrial hygienist Don Garvey explaining OSHA’s new construction silica regulation and gives some thoughts on what it means for construction safety managers.

Watch Webcast

All fields are required unless indicated optional
Email Address
First Name
Last Name
Country/Region
I would like to receive email updates and offers from 3M Personal Safety Division
3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.
Submit

Thank You

Your form was submitted successfully!

View the Webcast

Our Apologies...

An error has occurred while submitting. Please try again later...

Beyond the cutting and crushing: Helpful tips for the new US OSHA Construction Silica Regulation

Federal US OSHA has published several support documents that should be reviewed along with the complete regulation. Below are a few highlights that apply to construction applications.

New Reduced Permissible Exposure Limit (PEL): Lowered by 80% from what it used to be. OSHA has identified three methods to conduct an exposure assessment:

Table 1: Identifies common construction tasks and specifies appropriate and effective engineering controls, work practices, and respiratory protection for each task.

Performance Monitoring: Assess the 8-hour Time Weighted Average (TWA) exposure based on air monitoring data and other objective data.

Schedule Monitoring: Initial monitoring is used to assess the 8-hour TWA exposure based on a personal breathing zone (PBZ) air samples.

Written Exposure Control Plan: Describes methods used to control workplace exposures, such as engineering controls, work practices, and housekeeping measures. The requirements for the written exposure control plan include:

Description of the silica tasks

Engineering controls

Housekeeping measures

Methods to restrict access to work areas

Annual review of the plan for effectiveness and updates

Designated competent person to make frequent and regular inspections of job sites, materials, and equipment to ensure the implementation of the written exposure control plan

Medical Surveillance: The employer is required to make medical surveillance available at no cost and at a reasonable time and place for each worker required to wear respirators due to silica exposure. Required procedures:

Initial (baseline) examinations

Periodic examinations

Information provided to the physician or other licensed health care professional (PLHCP)

PLHCP’s written medical report for the employee

PLHCP’s written medical opinion for the employer

Additional examinations

Silica Competent Person: An individual who is capable of identifying existing and foreseeable respirable crystalline silica hazards in the workplace and who has authorization to take prompt corrective measures to eliminate or minimize.

Seven things to help you be in compliance with the new US OSHA construction silica regulation.

Identify a silica competent person and ensure they are trained appropriately

Decide if Table 1 can be used or if an exposure assessment must be done
- Using Table 1 - fully and properly implement all required controls (example: ensure tools operate per the manufacturer’s instructions)
- Not using Table 1 – conduct exposure assessment of workers

Develop the written exposure control plan

Implement the exposure control plan

Conduct frequent and regular inspections of the jobsite and modify the plan as conditions change

Call in qualified persons to support the competent person with complex or unique situations

Review the plan at the end of the project for lessons learned and incorporate them into future plans

Note: This is a brief overview of compliance. The employer must read and understand 29 CFR1926.1153 and all other US OSHA silica compliance directives prior to starting any silica work.

See More

Construction Silica Competent Person Course

This half-day course will provide initial classroom training for persons designated by their construction management to act as the Silica Competent Person for their site(s) or who want to learn more about the role of the competent person under the new OSHA construction silica regulation. Participants will acquire knowledge through lecture and real-world interactive examples that will help prepare them to comply with the new silica standard and meet the criteria to be a silica competent person.

Sign Up for Training

Competent Person Training Course Description (PDF, 181 KB)

Submit a Request for Onsite Training (we come to you)

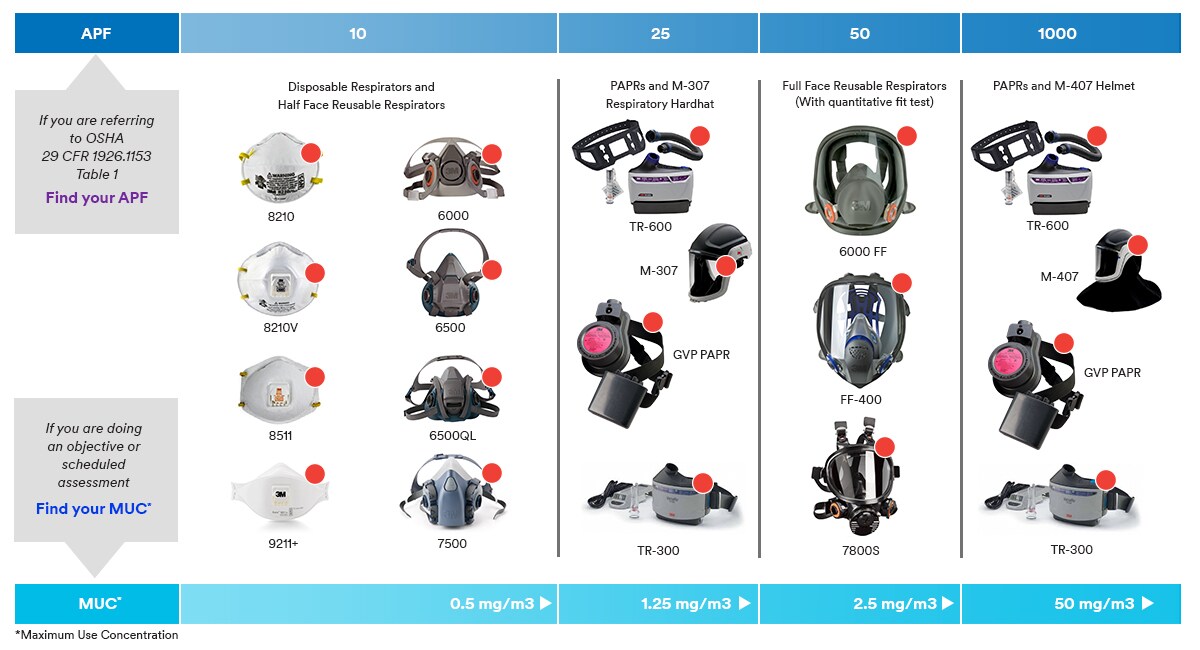

Respiratory protection based on the OSHA Construction Silica regulation revision

This is only a brief overview. Consult the full OSHA regulation 29 CFR 1926.1153 before starting any silica work.

Download Infographic (PDF, 598 KB)

Now is the time to act

Let us help you in your efforts to keep your workers healthy and safe by signing up to receive emails containing tools and information on the new regulation.

Act Now

All fields are required unless indicated optional
Email Address
First Name
Last Name
Country/Region
I would like to receive email updates and offers from 3M Personal Safety Division
Footnote: This is only a brief overview. Consult the full OSHA regulation 29 CFR 1926.1153 before starting any silica work.
